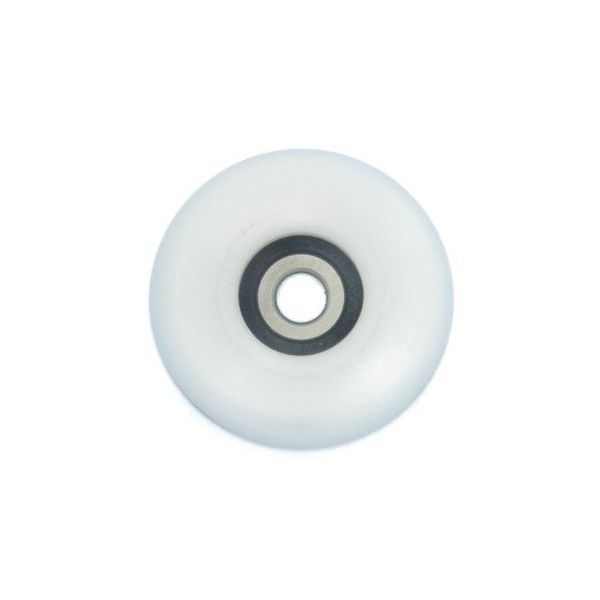

Bearing wheel Ø36.5mm white – Janousek / Stämpfli
€13.25
Bearing wheel Ø36.5mm for installation under a ball bearing seat. Specifically for older Janousek and Stämpfli boats.
* Price per piece. Sold in sets of four.
Note: This wheel is asymmetrical and must be installed correctly.
Availability:
In stock
SKU
R142
Bearing wheel Ø36.5mm white – Janousek / Stämpfli is available to buy in increments of 4
Bearing wheel Ø36.5mm for rowing seat
This Ø36.5mm bearing wheel is designed for use under a ball bearing seat (single-action) in older Janousek and Stämpfli boats. It differs from standard sizes and is therefore specific to these applications.
Note: this wheel is not symmetrical. Correct installation is essential for proper seat movement.

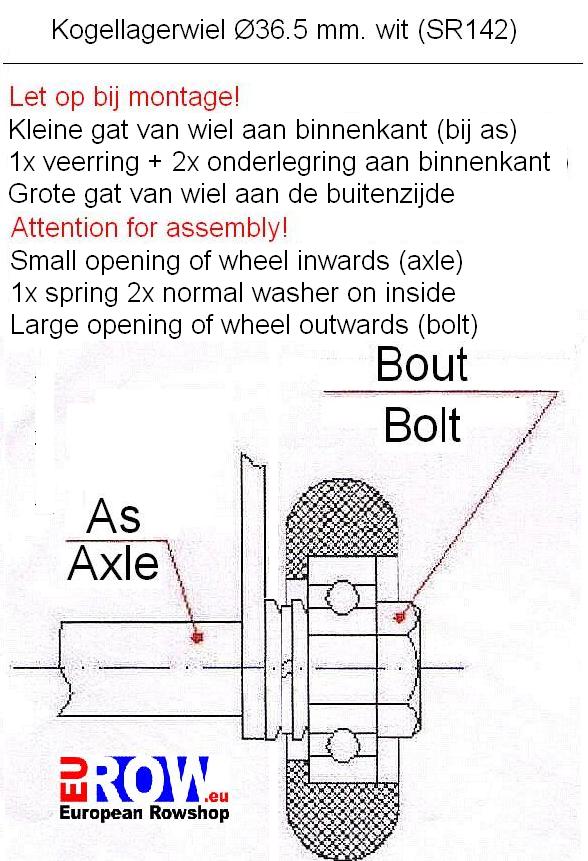

Installation
The side with the white retaining ring (raised edge holding the bearing) must face outward, on the bolt side. This is also the side where the bearing sits deeper in the wheel.
An M6 stainless steel washer and M6 spring washer must be installed between the seat frame and the wheel.
Installation guide when used with a Eurow undercarriage.
Application
- Ball bearing seats (single-action)
- For older Janousek and Stämpfli boats
- Installed in the seat undercarriage
Specifications
Diameter: 36.5 mm
Colour: white
Bearings: stainless steel
Type: asymmetrical bearing wheel
Application: ball bearing seat
Brand: Schröder
* Price per piece. Sold in sets of four.
View all bearing wheels for rowing seats or explore rowing seats and parts.
White single action wheel Ø36.5 mm.
Ø36.5 mm
Width: 8mm
Stainless steel bearings.
Price per piece. Sold per four.
Pay attention when mounting!
The hole with the white "clamping ring" (looks like a raised edge), which clamps the ball bearing in the wheel, must be on the outside, where the bolt is. That is also the side where the ball bearing is deeper in the wheel.
An M6 stainless steel ring and an M6 stainless steel spring washer must also be mounted between the side part and the wheel
